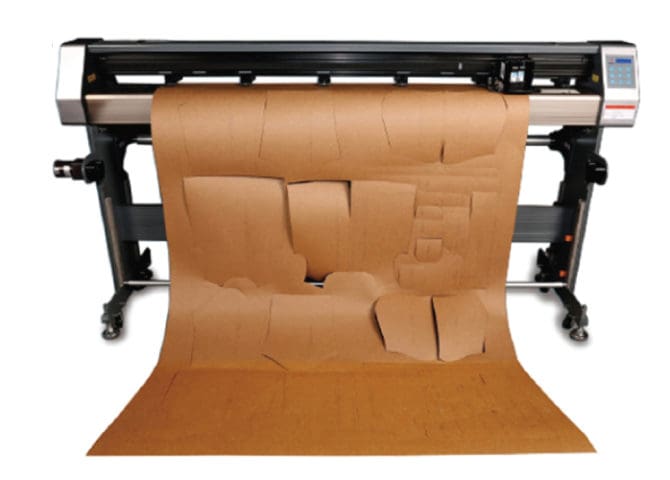

Features
- Easy connection with USB cable.
- Printing Head technology so that easy and convenient to replace.
- Compatible with most popular brands of Garment CAD software outputted HP-GL format files.
- Servo motors ensure high speed and smooth working.
- It works 3-5 times faster than traditional method.
- One machine multi functions, pattern drawing and cutting together or individual drawing.
- Machine uses HP45 cartridges, and its nozzle can be easily replaced.
- It is compatible with main CAD file formats in the market.
- Its servo control system makes drawing & cutting faster and working more stable.

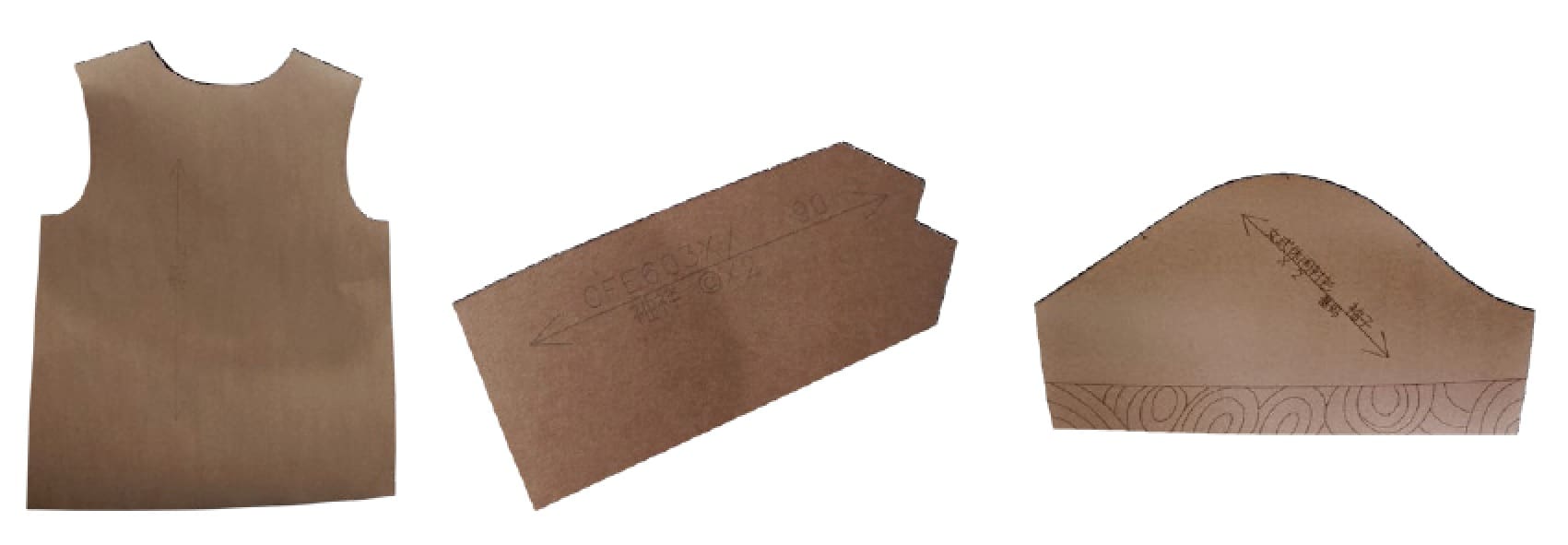

- High quality rotary cutting knife, can cut minimum 60g/ m2 white paper, for sample design and cost saving.
- Its efficiency is 3~5 times of traditional manual drawing and cutting.
- Optional double feeding structure, for time-saving during production.
Applications
Clothing, Shoes & Caps, Bags &Luggage, Home Textile and other industries.
Specification
| Max. Paper Weight | 35kg | Cutting Material Thickness | 60g~250g |
| Cutting Knife | Rotating Knife | Drawing Material Thickness | 40g-120g |
| Feeding System | Automatic Feeding System | Working Temperature | 0-40°C |
| Cartridge type | HP45 | Data Port | USB2.0/RJ45 netport |
| Cartridge Number | 2 | Motor Type | Full Servo Motor |
| Drawing Resolution | 0.025 | Date Format | HPGL/PLT， Compatible with main CAD Software In The Market |
| Printing Speed | 72㎡/h | Voltage | AC220V/110V±10% 50/60Hz |
| Cutting Speed | ≤100mm/s | Power | 0.4kW |
