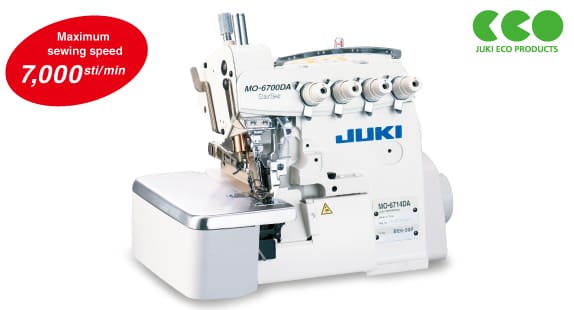

Juki MO-6700DA Semi-dry-head, High-speed, Overlock / Safety Stitch Machine

JUKI’s dry-head technology protects the sewing products from oil stains.
Best selling machine to eliminate oil stains on the sewing product.
JUKI’s cutting-edge dry-head technology has been introduced to the MO-6700S, which has an established reputation for its excellent seam quality and higher productivity.
Only the parts which mainly contribute to oil splashes are improved to have dry mechanisms to create the semi-dry-head overlock machine, MO6700DA series. The MO-6700DA Series is the best selling machine to eliminate oil stains on the sewing product.

Cutting-edge dry technology for achieving a lubrication-free mechanism

The needle bar mechanism and upper looper mechanism have been re-designed to require no lubrication.
The most-advanced dry technologies, such as the special surface treatment applied to the major drive unit and the grease feeding method, contribute to higher durability. The machine does not splash oil after a long-period of use. The grease filler openings are newly provided for the sewing machine on two locations, i.e., one on the upper looper component and the other on the sewing machine frame, thereby improving maintainability.

A variety of subclass machines is available

Oil stains on the sewing product are eliminated

- Oil splashes are substantially reduced to eliminate oil stains on sewing products, thereby upgrading the finished quality.
- The frequency of stain removal or re-sewing is reduced.
- The machine achieves a practical maximum sewing speed of 7,000sti/min.

Anti-material-slip type

MO-6714DA--30P
MO-6716DA--30P

The sewing machine is fully equipped with adjusting devices and provisions to effectively prevent puckering of difficult-to-sew materials or new-generation materials. The operator is able to produce beautifully finished highquality seams without conducting difficult adjustments.

Specification

Model name	MO-6704DA	MO-6714DA	MO-6716DA
Stitch type	1-needle overlock	2-needle overlock	Safety stitching
Stitch style in the U.S.A.	504	514	516
Max. sewing speed	7,000sti/min*
Stitch length	0.8~4mm		1.5~4mm
Needle gauge (mm)	–	2.0, 3.2	3.2, 4.8, 4.8+2.0, 3.2+2.0
Overedging width (mm)	1.6, 3.2, 4.0, 4.8	2.0, 3.2, 4.0, 4.8	3.2, 4.0, 4.8, 6.4
Bottom differential feed ratio	For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)
Needle bar stroke	24.5mm
Inclination angle of the needle	20°
Needle mechanism	Needle bar method and upper /lower bushing
Needle	DC×27 (excluding some subclass model)
Max. lift of the presser foot	7mm (excluding some subclass model)
Max. presser foot pressure	63.7N (6.5kgf)
Stitch adjusting method	By push-button
Differential-feed adjusting method	By lever (with micro-adjustment)
Weight of the machine head	28kg
Lubrication	Automatic (The needle bar mechanism and upper looper mechanism do not requ ire lubrication.)
Lubricating oil	JUKI Machine Oil 18 (equivalent to ISO VG18)
Needle cooler	Option
Needle thread heat remover	Option
Micro-lifter	Provided as standard

*sti/min is the abbreviation for “stitches per minute”

When you place orders

Subclass machine list

Gauge

MO-6704DA

Sub class	Guage	THROAT PLATE	MAIN FEED DOG	AUXILIARY FEED DOG	DIFFERENTIAL FEED DOG	PRESSER FOOT ASM.	PRESSER FOOT HINGE	PRESSER FOOT	STITCH TONGUE	NEEDLE CLAMP	UPPER LOOPER	LOWER LOOPER
	Figure
	Needle width Overedging width	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N
MO-6704DA-0E4-300	4	R4200J6ED00	13191606	13191309	13192802	11876158	11872009	B1507804C00	B1509804C00	13175005	11888104	11999307
MO-6704DA-0E4-307	4	R4200J6ED00	13191606	13191309	13192802	11876158	11872009	B1507804C00	B1509804C00	13175005	11888104	11999307
MO-6704DA-0F4-307	4.8	R4200J6FD00	13191606	13191309	13192802	11876257	11872009	B150781400P	B1509804C0A	13175005	11888104	11999307
MO-6704DA-0E4-40H	4	R4200J6ED00	13191606	13191309	13192802	11876158	11872009	B1507804C00	B1509804C00	13175005	11991908	11999307
MO-6704DA-0F6-50H	4.8	R4300J6FE0B	11883303	13191309	11885605	11876455	11872009	11873007	B1509804C0A	13175005	11991908	11999307
MO-6705DA-0D4-210/L121	3.2	R4200J6DD00	13191606	13191309	13192802	11992153	11872009	11992104	11874807	13175005	11888104	11999307
MO-6704DA-0A4-150	1.6	R4200J6AC00	11898905	11887007	11899002	11876059	11872009	B1507804C00	11792900	13175005	11888104	11999307
MO-6704DA-0A5-150	1.6	R4100J6AC01	11882008	11887007	11885001	11876059	11872009	B1507804C00	11792900	13175005	11888104	11999307

Sub class	Guage	CLOTH WASTE COVER_WITH NEEDLE COOLER	CLOTH WASTE COVER_ WITHOUT NEEDLE COOLER	UPPER KNIFE	LOWER KNIFE	NEEDLE HOLDER	TRAVELING NEEDLE GUARD	GUIDE SUPPORT GAUGE	UPPER LOOPER ARM	UPPER LOOPER GUIDE
	Figure
	Needle width Overedging width	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N
MO-6704DA-0E4-300	4	13104104	13104005	11845807	13150701	11890100	11890001	13131909	13131057	40039400
MO-6704DA-0E4-307	4	13104104	13104005	11845807	13150701	11890100	11890001	13131909	13131057	40039401
MO-6704DA-0F4-307	4.8	13104104	13104005	11845807	13150701	11890100	11890001	13131909	13131057	40039401
MO-6704DA-0E4-40H	4	13104104	13104005	11845807	13150701	11890100	11890001	13132006	13131057	40039400
MO-6704DA-0F6-50H	4.8	13104104	13104005	11845807	13150701	11890100	11890001	13132006	13131057	40039400
MO-6705DA-0D4-210/L121	3.2	13104104	13104005	11845807	13150701	11890100	11890001	13131909	13131057	40039400
MO-6704DA-0A4-150	1.6	13104104	13104104	11845807	13150701	11890100	11890001	13131909	13131057	40039400
MO-6704DA-0A5-150	1.6	13104104	13104104	11845807	13150701	11890100	11890001	13131909	13131057	40039400

MO-6714DA

Sub class	Guage	THROAT PLATE	MAIN FEED DOG	AUXILIARY FEED DOG	DIFFERENTIAL FEED DOG	PRESSER FOOT ASM.	PRESSER FOOT HINGE	PRESSER FOOT	STITCH TONGUE	NEEDLE CLAMP	UPPER LOOPER	LOWER LOOPER
	Figure
	Needle width Overedging width	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N
MO-6714DA-BD6-207	2*3.2	R4305J6DE00	13192000	13191309	13193206	11876851	11872009	B150781400P	11874203	12256905	12176004	11999307
MO-6714DA-BE6-207	2*4	R4305J6EE00	13192000	13191309	13193206	11876851	11872009	B150781400P	11874203	12256905	12176004	11999307
MO-6714DA-BD6-307
MO-6714DA-BE6-307	2*4	R4305J6EE00	13192000	13191309	13193206	11876851	11872009	B150781400P	11874203	12256905	12176004	11999307
MO-6714DA-BE6-20H	2*4	R4305J6EE00	13192000	13191309	13193206	11876851	11872009	B150781400P	11874203	12256905	12176103	11999307
MO-6714DA-BE6-40H	2*4	R4305J6EE00	13192000	13191309	13193206	11876851	11872009	B150781400P	11874203	12256905	12176103	11999307
MO-6712DA-DF6-50F	3.2*4.8	R4308J6FE0B	11882503	11987005	11790706	11877156	11872009	11790508	11790607	12149407	11996600	11995206
MO-6714DA-BB6-30P	2*2	R4305J6BE0A	12171500	13191309	12172003	11876851	11872009	B150781400P	11874203	12256905	12176004	11999307
MO-6714DA-BD6-30P	2*3.2	R4305J6DE0A	12171500	13191309	12172003	11876851	11872009	B150781400P	11874203	12256905	12176004	11999307
MO-6714DA-BE6-30P	2*4	R4305J6EE0B	12171500	13191309	12172003	11876851	11872009	B150781400P	11874203	12256905	12176004	11999307
MO-6714DA-BE6-327/S162	2*4	R4305J6EE0A	11883402	13191309	12171807	11879350	11872009	11974102	B150981400P	12256905	12176004	11999307
MO-6714DA-BD6-24H/G39/Q141	2*3.2	R4305J6DE00	13192000	13191309	13193206	13182852	13178603	13184205	13187604	12256905	12176103	11999307
MO-6714DA-BE6-24H/G39/Q141	2*4	R4305J6EE00	13192000	13191309	13193206	13182852	13178603	13184205	13187604	12256905	12176103	11999307
MO-6714DA-BD6-347/G39/Q141	2*3.2	R4305J6DE00	13192000	13191309	13193206	13182852	13178603	13184205	B150981400P	12256905	12176004	11999307
MO-6714DA-BE6-347/G39/Q141	2*4	R4305J6EE00	13192000	13191309	13193206	13182852	13178603	13184205	B150981400P	12256905	12176004	11999307
MO-6714DA-BD6-34H/G39/Q141	2*3.2	R4305J6DE00	13192000	13191309	13193206	13182852	13178603	13184205	B150981400P	12256905	12176103	11999307
MO-6714DA-BE6-34H/G39/Q141	2*4	R4305J6EE00	13192000	13191309	13193206	13182852	13178603	13184205	B150981400P	12256905	12176103	11999307
MO-6714DA-BE6-44H/G39/Q141	2*4	R4305J6EE00	13192000	13191309	13193206	13182852	13178603	13184205	13187604	12256905	12176103	11999307

Sub class	Guage	CLOTH WASTE COVER_WITH NEEDLE COOLER	CLOTH WASTE COVER_ WITHOUT NEEDLE COOLER	UPPER KNIFE	LOWER KNIFE	NEEDLE HOLDER	TRAVELING NEEDLE GUARD	GUIDE SUPPORT GAUGE	UPPER LOOPER ARM	UPPER LOOPER GUIDE
	Figure
	Needle width Overedging width	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N
MO-6714DA-BD6-207	2*3.2	13104104	13104005	11845807	13150701	11890308	11890001	13131909	13131156	40039401
MO-6714DA-BE6-207	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13131909	13131156	40039401
MO-6714DA-BD6-307
MO-6714DA-BE6-307	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13131909	13131156	40039401
MO-6714DA-BE6-20H	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13132006	13131156	40039400
MO-6714DA-BE6-40H	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13132006	13131156	40039400
MO-6712DA-DF6-50F	3.2*4.8	13104104	13104005	11845807	13150701	11890407	11890001	13131909	13131156	40032579
MO-6714DA-BB6-30P	2*2	13104104	13104005	11845807	13150701	11890308	11890001	13131909	13131156	40039401
MO-6714DA-BD6-30P	2*3.2	13104104	13104005	11845807	13150701	11890308	11890001	13131909	13131156	40039401
MO-6714DA-BE6-30P	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13131909	13131156	40039401
MO-6714DA-BE6-327/S162	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13131909	13131156	40039401
MO-6714DA-BD6-24H/G39/Q141	2*3.2	13104104	13104005	11845807	13150701	11890308	11890001	13132006	13131156	40039400
MO-6714DA-BE6-24H/G39/Q141	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13132006	13131156	40039400
MO-6714DA-BD6-347/G39/Q141	2*3.2	13104104	13104005	11845807	13150701	11890308	11890001	13131909	13131156	40039401
MO-6714DA-BE6-347/G39/Q141	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13131909	13131156	40039401
MO-6714DA-BD6-34H/G39/Q141	2*3.2	13104104	13104005	11845807	13150701	11890308	11890001	13132006	13131156	40039401
MO-6714DA-BE6-34H/G39/Q141	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13132006	13131156	40039401
MO-6714DA-BE6-44H/G39/Q141	2*4	13104104	13104005	11845807	13150701	11890308	11890001	13132006	13131156	40039401

MO-6716DA
MO-6743DA
MO-6745DA

Sub class	Guage	THROAT PLATE	MAIN FEED DOG	AUXILIARY FEED DOG	DIFFERENTIAL FEED DOG	HINGING PRESSER ASM.	PRESSER FOOT HINGE	FRONT PRESSER	REAR PRESSER	CHAIN LOOPER NEEDLE CLAMP	UPPER LOOPER	LOWER LOOPER
	Figure
	Needle width Overedging width	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N
MO-6716DA-DE4-300	3.2*4	R4508J6ED00	13192406	13191408	13193602	12153755	12156907	12162202	12164802	12257002	11888104	11999307
MO-6716DA-DE6-307	3.2*4	R4608J6ED00	11882909	13191408	12173209	12153755	12156907	12162202	12164802	12257002	11888104	11999307
MO-6716DA-DF4-307	3.2*4.8	R4508J6FD00	13192406	13191408	13193602	12153755	12156907	12162202	12164802	12257002	11888104	11999307
MO-6716DA-DE4-40H	3.2*4	R4508J6ED00	13192406	13191408	13193602	12153755	12156907	12162202	12164802	12257002	11991908	11999307
MO-6716DA-DE4-40H/E35	3.2*4	R4508J6ED00	13192406	13191408	13193602	12153755	12156907	12162202	12164802	12257002	11991908	11999307
MO-6716DA-DF4-40H
MO-6716DA-DE6-40H	3.2*4	R4608J6ED00	11882909	13191408	12173209	12153755	12156907	12162202	12164802	12257002	11991908	11999307
MO-6716DA-FF6-307	4.8*4.8	R4612J6FD00	11884004	13191408	12173308	12154258	12157004	12162707	12165304	12257507	11888104	11999307
MO-6716DA-FF6-40H	4.8*4.8	R4612J6FD00	11884004	13191408	12173308	12154258	12157004	12162707	12165304	12257507	11991908	11999307
MO-6716DA-FF6-50H	4.8*4.8	R4612J6FF00	11883006	13191408	12173506	11991171	11991023	11991114	11991205	12257507	11991908	11999307
MO-6716DA-FH6-50H	4.8*6.4	R4612J6HG00	11883006	13191408	12173506	11991171	11991023	11991114	11991205	12257507	11991908	11999307
MO-6716DA-DE4-30P	3.2*4	R4508J6ED0A	12171302	13191408	12174306	11879954	11872504	B1507816D0R	11875804	12257002	11888104	11999307
MO-6716DA-FF4-30P	4.8*4.8	R4512J6FD0A	12171609	13191408	12174702	12154258	12157004	12162707	12165304	12150306	11888104	11999307
MO-6716DA-FF6-42H/S159	4.8*4.8	R4612J6FD0A	12170908	13191408	12174504	12154852	12157004	12162707	12165304	12257507	11991908	11999307
MO-6743DA-1D6-40H	4.823.2	R4612J6DE01	11884004	13191408	12173308	11878055	11872007	B1507843F00	11875507	12275004	12176103	11999307
MO-6743DA-2D6-40H	3.223.2	R4608J6DE01	11882305	13191408	12173308	11877958	11872116	B1507843D00	11875408	12150504	12176103	11999307
MO-6745DA-FF4-360/N077	4.8*4.8	40026881	40031382	–	40031381	40031637	11872405	40026885	12164802	12150306	–	–

Sub class	Guage	CHAIN LOOPER	CLOTH WASTE COVER	UPPER KNIFE	LOWER KNIFE	NEEDLE HOLDER	NEEDLE HOLDER	NEEDLE HOLDER	TRAVELING NEEDLE GUARD	GUIDE SUPPORT GAUGE	UPPER LOOPER ARM	UPPER LOOPER GUIDE	THREAD PLATE CLAW
	Figure
	Needle width Overedging width	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N	P/N
MO-6716DA-DE4-300	3.2*4	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131057	40039400	–
MO-6716DA-DE6-307	3.2*4	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13131909	13131156	40039401	–
MO-6716DA-DF4-307	3.2*4.8	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13131909	13131156	40039401	–
MO-6716DA-DE4-40H	3.2*4	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131156	40039400	–
MO-6716DA-DE4-40H/E35	3.2*4	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131156	40039400	12278602
MO-6716DA-DF4-40H
MO-6716DA-DE6-40H	3.2*4	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131156	40039400	–
MO-6716DA-FF6-307	4.8*4.8	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13131909	13131156	40039401	–
MO-6716DA-FF6-40H	4.8*4.8	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131156	40039400	–
MO-6716DA-FF6-50H	4.8*4.8	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131156	40039400	–
MO-6716DA-FH6-50H	4.8*6.4	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131156	40039400	–
MO-6716DA-DE4-30P	3.2*4	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131057	40039400	–
MO-6716DA-FF4-30P	4.8*4.8	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131057	40039400	–
MO-6716DA-FF6-42H/S159	4.8*4.8	12120705	13104203	11845906	13150701	12015301	12015400	12177903	11890001	13132006	13131156	40039400	–
MO-6743DA-1D6-40H	4.823.2	12120705	13104203	11845906	13150701	11999406	12015301	11999406	11890001	13132006	13131156	40039400	–
MO-6743DA-2D6-40H	3.223.2	12120705	13104203	11845906	13150701	11999406	12177903	–	11890001	13132006	13131156	40039400	–
MO-6745DA-FF4-360/N077	4.8*4.8	11999604	13105309	11845807	13150701	11890902	11891009	12177903	–	–	–	–	–
