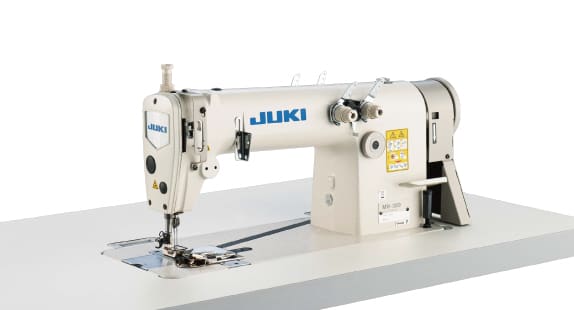

Juki MH-380 (Parallel 2-needle) MH-382 (Tandem 2-needle) High-speed, Flat-bed, 2-needle Double Chainstitch Machine

Various gauge sets and attachments allow the machine to adapt to many different processes and specifications.

Compatible with various processes

Accurate stitching performance and durable finished seams are particularly necessary in the chainstitching process.
JUKI ensures high-quality sewing with a higher degree of consistency with its unique looper mechanism and consistent condensation stitching mechanism. Furthermore, highly efficient operation is achieved by using a chain-off thread cutting device (AT-8).

The machine ensures outstanding reliability and durability

It comes with JUKI’s unique inclined crank type looper mechanism. This gives the machine outstanding durability.
You can use the sewing machine for a long time without ever worrying about looper failure.

The machine is capable of performing consistent condensation stitching, ensuring finished seams of higher quality
You can easily set the machine to perform condensation stitching by operating the lever.
Condensation stitches that prevent the thread from fraying can be consistently sewn.

Specification

Model name	MH-380	MH-382
Model name	Parallel 2-needle, double chainstitch machine	Tandem 2-needle, double chainstitch machine
Max. sewing speed	6,000sti/min*
Max. stitch length	4mm
Lift of the presser foot	By hand: 5.5mm, By knee: 10mm
Needle bar stroke	30mm
Needle (at the time of delivery)	TV×7 (#14) #9~#21
Thread take-up	Needle bar thread take-up
Stitch length adjustment	By stitch dial (lockstitch)
Condensation stitches	By lever for condensation stitching
Looper system	Rocking type looper
Looper stroke	22.6mm
Lubrication	Automatic
Lubricating oil	JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

*sti/min is the abbreviation for “stitches per minute”

When you place orders

Gauge

MH-380

Guage			THROAT PLATE	NEEDLE CLAMP ASM.	PRESSER FOOT ASM.	FEED DOG	MOVING NEEDLE GUARD	RIGHT FIXED NEEDLE GUARD	LEFT FIXED NEEDLE GUARD
Figure
Needle width			P/N	P/N	P/N	P/N	P/N	P/N	P/N
Code	inch	mm	P/N	P/N	P/N	P/N	P/N	P/N	P/N
B	1/8	3.2	B1103380B00	B1406019BA0	B1509038BB0	B1613380B00	B2311380B00	B2315380000	B2312380000
C	5/32	4.0	B1103380C00	B1406019CA0	B1509038CB0	B1613380B00	B2311380B00	B2315380000	B2312380000
D	3/16	4.8	B1103380D00	B1406019DA0	B1509038DB0	B1613380D00	B2311380B00	B2315380000	B2312380000
E	7/32	5.6	B1103380E00	B1406019EA0	B1509038EB0	B1613380F00	B2311380E00	B2315380000	B2312380000
F	1/4	6.4	B1103380F00	B1406019FA0	B1509038FB0	B1613380F00	B2311380E00	B2315380000	B2312380000
H	5/16	7.9	B1103380H00	B1406038HA0	B1509038HB0	B1613380H00	B2311380H00	B2315380000	B2312380000
K	3/8	9.5	B1103380K00	B1406038KA0	B1509038KB0	B1613380K00	B2311380H00	B2315380000	B2312380000
L	1/2	12.7	B1103380L00	B1406038LA0	B1509038LBB	B1613380L00	B2311380L00	B2315380000	B2312380000
Remarks			–	–	With a needle cover	–	–	–	–

Guage			RIGHT LOOPER	LEFT LOOPER	SLIDE PLATE ASM.	CAM COVER (FRONT)	FOLDER (FOR MEDIUM-WEIGHT)
Figure
Needle width			P/N	P/N	P/N	P/N	P/N
Code	inch	mm	P/N	P/N	P/N	P/N	P/N
B	1/8	3.2	B2031380000	B2030380000	B1104380AA0	B1108380BA0	B9126038BAB
C	5/32	4.0	B2031380000	B2030380000	B1104380AA0	B1108380BA0	B9126038CAB
D	3/16	4.8	B2031380000	B2030380000	B1104380AA0	B1108380BA0	B9126038DAB
E	7/32	5.6	B2031380000	B2030380000	B1104380AA0	B1108380BA0	B9126038EAB
F	1/4	6.4	B2031380000	B2030380000	B1104380AA0	B1108380BA0	B9126038FAB
H	5/16	7.9	B2031380000	B2030380000	B1104380AA0	B1108380HA0	B9126038HAB
K	3/8	9.5	B2031380000	B2030380000	B1104380AA0	B1108380HA0	–
L	1/2	12.7	B2031380000	B2030380000	B1104380LA0	B1108380LA0	–

MH-382

Guage			THROAT PLATE	NEEDLE CLAMP ASM.	PRESSER FOOT ASM.	FEED DOG	MOVING NEEDLE GUARD	FIXED NEEDLE GUARD
Figure
Needle width			P/N	P/N	P/N	P/N	P/N	P/N
Code	inch	mm	P/N	P/N	P/N	P/N	P/N	P/N
–	–	–	B1103382000	D1406038BA0	B15243820B0	B1613382000	B2311382000	B2312382000
Remarks			–	–	With a needle cover	–	–	–
