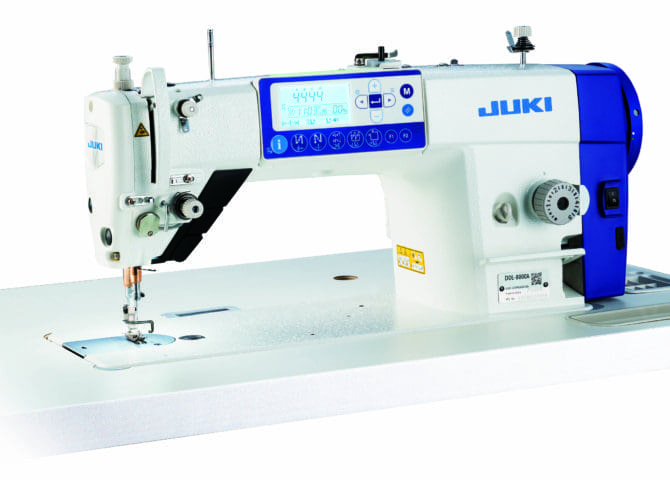

The DDL-8000A is the first in the line of Juki’s new “Simply Smart” series of machines. This new model comes with internally built motor and intuitive operation panel.
Good Value Models with JUKI Quality and Friendly to Operators
The DDL-8000A Series maintains JUKI’s established seam quality and is provided with narrowed-down essential and simplified functions.
It helps improve the work efficiency through operator assistance with its audio guidance.
Voice guidance for assisting the operator (newly-developed LCD panel)
This sewing machine is provided as standard with the voice guidance with clock function.
USB port standard equipment
Since the USB port is provided as standard for the operation panel and control box, sewing data can be managed and the relevant software can be upgraded with ease.
Automatic turning OFF function of the operation panel backlight
The backlight of the operation panel is automatically turned OFF when the operation panel is not operated for a certain period of time. (Setting time: 1- 20 minutes)
LED hand light
Illuminance of the LED hand light is adjustable in five levels. It can be adjusted to the illuminance to help the operator to easily carry out work around the needle, thereby helping increase work efficiency.
Shorter-thread remaining type DDL-8000AB
The shorter-thread remaining type model is the high-performance sewing machine provided with the thread clamp device which is used at the beginning of sewing and the shorter-thread remaining function which is used at the end of sewing.
With these features, manual thread nipping work is no longer required.
Double blades drive rotary knife type thread trimmer has been adopted. Since this thread trimmer blades intersect with each other just under the needle entry, an appropriate length of needle thread is ensured without being affected by the stitch length and the length of thread remaining on the material is 3.5 mm or less with consistency.
The DDL-8000A Series of sewing machines use two different lubricating methods
- MSemi-dry head type
DDL-8000A-MSMax. sewing speed: 5,000sti/min*Sewing work free from oil stains by means of our leading-edge dry-head technology.
With the advanced dry technology of enabling operation without being lubricated, a frame which does not need lubrication has been developed. It is provided with not only a high-speed sewing capability, but also a safety feature for preventing oil stains.
- SMinute-quantity lubrication type
DDL-8000A-SH
DDL-8000A-SJMax. sewing speed: 4,500sti/min*The machine contributes to production improvement.
The DDL-8000A-SH is the standard model developed with the emphasis on durability. It produces seams with consistency when run at speeds which falls in the range of the highest sewing speeds.
Specification
| Model name | DDL-8000AS-MS | DDL-8000AS-SH | DDL-8000AS-SJ | DDL-8000AB-MS | DDL-8000AB-SH | DDL-8000AB-SJ | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Specification | Standard type | Shorter-thread remaining type | ||||||||
| Application | Medium-weight | Heavy-weight | Jeans·Heavy-weight | Medium-weight | Heavy-weight | Jeans·Heavy-weight | ||||
| Lubrication | Semi-dry | Minute-quantity lubrication | Semi-dry | Minute-quantity lubrication | ||||||
| Max. sewing speed | 5,000sti/min*1 | 4,500sti/min*1 | 5,000sti/min*1 | 4,500sti/min*1 | ||||||
| Max. stitch length | 5mm | 5mm (7mm)*2 | 5mm | 5mm (7mm)*2 | ||||||
| Lift of the presser foot | By hand: 5.5mm, Auto: 1st stage 8.5mm, 2nd stage 13mm, By knee: 15mm | |||||||||
| Voice guidance | with voice guide | |||||||||
| Lubricating oil | JUKI Machine Oil 7 (equivalent to ISO VG7) | |||||||||
| Needle | DB×1 (#11) #9~18 (134Nm65~110) | DB×1 (#21) #20~23 (134Nm125~160) | DP×5 (#21) #20~23 (134Nm125~160) | DB×1 (#11) #9~18 (134Nm65~110) | DB×1 (#21) #20~23 (134Nm125~160) | DP×5 (#21) #20~23 (134Nm125~160) | ||||
| Power consumption | 330VA (Main motor output 550W) | |||||||||
*1 sti/min is the abbreviation for “stitches per minute”
*2 When the optional long pitch kit is installed: 7mm (normal feed), 5mm (reverse feed)
Gauge
DDL-8000AS-MS
DDL-8000AB-MS
| Guage | THROAT PLATE | PRESSER FOOT ASM. | FEED DOG | NEEDLE | ||||
|---|---|---|---|---|---|---|---|---|
| Figure |  |  |  |  | ||||
| Needle width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| – | B1109552000 | 4 sheets φ1.9_ inch_China | B15240120BA | Width 1.9 | 40133950 | 4 teeth_ pitch1.5 | MDB100B1100 | #11_Organ_general |
| – | B1109012I0B | 4 sheets φ1.6_inch_ general_Europe | – | – | – | – | MDB100B1400 | #14_Organ_China |
| – | – | – | – | – | – | – | MC200500750 | Nm75_Shumets_Europe |
| Guage | HOOK | NEEDLE BAR | BOBBIN CASE ASM. | BOBBIN | ||||
|---|---|---|---|---|---|---|---|---|
| Figure |  |  |  |  | ||||
| Needle width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| – | 11038650 | Standard_general_China | 22886907 | Return 1.8_Shankφ1.64_general_China | 11038759 | – | 22932909 | Iron |
| – | 11141355 | Standard:C_Europe | 22887004 | Return 1.8_Shankφ2.02_Europe | – | – | – | – |
| Guage | PRESSER_SPRING | SLIDE_PLATE | ||
|---|---|---|---|---|
| Figure |  |  | ||
| Needle width | P/N | Remarks | P/N | Remarks |
| – | 22907406 | – | 22901250 | Iron_crape weave |
DDL-8000AS-SH
DDL-8000AB-SH
| Guage | THROAT PLATE | PRESSER FOOT ASM. | FEED DOG | NEEDLE | ||||
|---|---|---|---|---|---|---|---|---|
| Figure |  |  |  |  | ||||
| Needle width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| – | 40089605 | 4 sheets φ2.6_no scale_general_Europe | D1524555EBL | Width 2.2_ general_Europe | 11403003 | 4 teeth_general_Europe | MDB100B2100 | #21_Organ_ general;_China |
| – | 11062007 | 3 sheets φ2.6_no scale_China | 40064839 | Widrh 1.9_China | 11062601 | 3 teeth_China | MC200501300 | Nm130_Shumets _Europe |
| Guage | HOOK | NEEDLE BAR | BOBBIN CASE ASM. | BOBBIN | ||||
|---|---|---|---|---|---|---|---|---|
| Figure |  |  |  | | ||||
| Needle width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| – | 11092251 | Thick | 40061767 | Return 2.3_Shankφ2.04 | 40000264 | – | 22932909 | Iron |
| Guage | PRESSER_SPRING | SLIDE_PLATE | ||
|---|---|---|---|---|
| Figure |  | | ||
| Needle width | P/N | Remarks | P/N | Remarks |
| – | B1505552000A | – | 22901250 | Iron_crape weave |
DDL-8000AS-SJ
DDL-8000AB-SJ
| Guage | THROAT PLATE | PRESSER FOOT ASM. | FEED DOG | NEEDLE | ||||
|---|---|---|---|---|---|---|---|---|
| Figure | | | |  | ||||
| Needle width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| – | 40089605 | 4 sheets φ2.6_no scale_general_Europe | D1524555EBL | Width 2.2_ general_Europe | 11403003 | 4 teeth_general_Europe | MC200501300 | Nm130_Shumets_Europe |
| – | 11062007 | 3 sheets φ2.6_no scale_China | 40064839 | Widrh 1.9_China | 11062601 | 3 teeth_China | MDP500B2100 | #21Organ_general_China |
| Guage | HOOK | NEEDLE BAR | BOBBIN CASE ASM. | BOBBIN | ||||
|---|---|---|---|---|---|---|---|---|
| Figure |  | | | | ||||
| Needle width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| – | 40035058 | For jeans | 40061767 | Return 2.3_Shankφ2.04 | 40000264 | – | 22932909 | Iron |
| Guage | PRESSER_SPRING | SLIDE_PLATE | ||
|---|---|---|---|---|
| Figure | | | ||
| Needle width | P/N | Remarks | P/N | Remarks |
| – | B1505552000A | – | 22901250 | Iron_crape weave |
