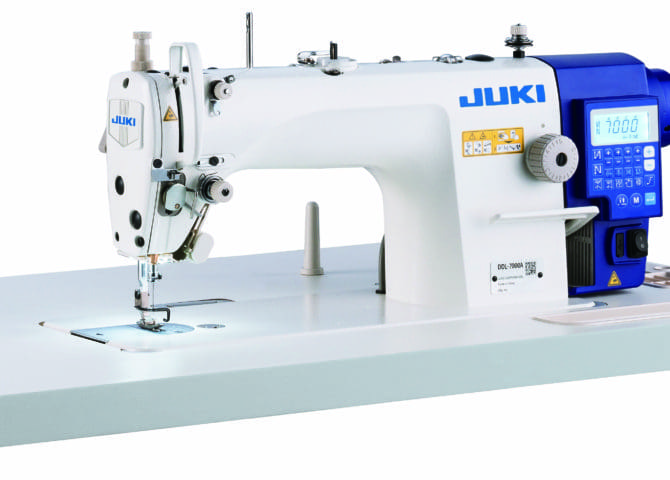

The DDL-7000A has servo-motor, operation panel and control box all as standard built into the machine head. These features lead to lower power consumption and better material responsiveness.
Responsiveness to the material is improved to sew many different types of materials.
The thread take-up lever which provides a wider sewing range is adopted.
Needle bar stroke is 35 mm, with this feature, the sewing machine is able to sew many different types of materials ranging from light-weight ones to medium-weight denim.
The compact-sized control box and operation panel
Both the compact-sized control box and the operation panel are integrated with the machine head. The machine is provided as standard with the operation panel.
Provided as standard with LED lighting
Since the LED lights cast their light exactly downward to illuminate the needle entry area from the right and left sides of the needle bar, sewing work can be carried out more easily as compared with the use of light from one direction. In addition, the illuminance of the LED lights can be adjusted in five steps and can be used as an auxiliary light for work.
Highly-functional touch-back switch
JUKI’s sewing machine which is provided with a thread trimmer is also provided as standard with the renowned needle breakage preventing function. The main shaft angle control works to prevent needle breakage even when the touch-back switch is used to perform reverse feed stitching. The height of the touch-back switch is adjustable according to the items to be sewn.
Specification
| Model name | DDL-7000AS-7 | DDL-7000AH-7 |
|---|---|---|
| Application | Light to medium weight | Heavy weight |
| Max. sewing speed | 5,000 sti/min* | 4,000 sti/min* |
| Max. stitch length | 5mm | |
| Presser foot | By hand: 5.5mm, By knee: 13mm | |
| Lubricating oil | JUKI Machine Oil 7 (equivalent to ISO VG7) | |
| Needle | DB × 1 (#14) #14~#18 | DP × 5 (#21) #20~#23 |
| Power consumption | 210VA | |
| Weight of machine head | 34kg (include motor, control box, cover) | |
| Outside dimensions of package (mm) | 833 × 278 × 459 | |
* sti/min is the abbreviation for “stitches per minute”
