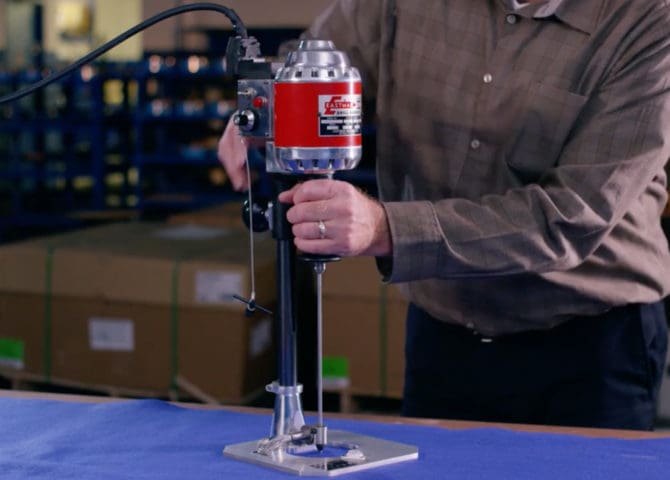

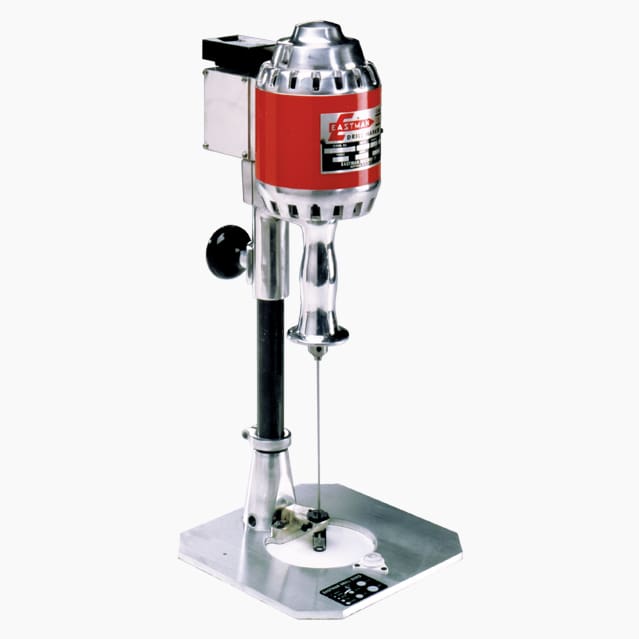

MODEL CD3 – The Eastman Cloth Drill marker can drill holes through numerous layers of fabric, indicating buttonholes, darts, pockets, and other attachment points.

The Eastman Cloth drill marker can drill holes through numerous layers of fabric, indicating buttonholes, darts, pockets, and other attachment points.

This is perfect for use on loosely knit, bulky, or quilted spreads, where a mark is needed, but where a burn mark would be unnecessary.

Features

Drills holes through numerous layers of fabric to indicate buttonholes, darts or other markings
Perfect for use on loosely knit, bulky or quilted spreads where a mark is needed but a burn mark unnecessary
Telescoping drive shaft and powerful AC motor for dependability and durability

Specification

Motors	110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz
Horsepower	0.20hp, 1ph 0.34hp, 3ph
Weight	15 lbs. 12 oz. (6.84kg)
Drill Tips Available	Standard: Taper Point Optional: Diamond Point, Open End Awl, Closed Awl, PTFE Coated
Drill Diameter	English Metric 3/64 in 1.19mm 5/64 in 1.98mm 3/32 in 2.38mm 1/8 in 3.18mm 5/32 in 3.97mm 3/16 in 4.76mm 1/4 in 6.35mm 5/16 in 7.93mm 3/8 in 9.52mm
Drilling Capacity	6 in. (15.2cm) 8 in. (20.3cm) 11.5 in. (29.2cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
